A vacuum sync (vacuum synchronization) is the process of balancing airflow through each carburetor so all four cylinders pull evenly at idle and during light throttle.

On a Honda CB550K, there are four cylinders and four carburetors. Each carburetor feeds one cylinder. If one carburetor is more open (or less open) than the others at the same throttle position, that cylinder does more (or less) work, and the engine feels rough and inconsistent.

Imagine tire pressure on a car. A car can move with mismatched tire pressures, but it won’t drive straight or smoothly. Carburetor sync is the same idea: the motorcycle will run, but it will not be optimized.

Compatibility

This process applies to four-cylinder Honda motorcycles from the late 1960s through the late 1970s that use four carburetors (one per cylinder), including:

• Honda CB500K, CB550K, CB550F

• Honda CB750K, CB750F, CB750A

• Honda CB350F and CB400F “small fours”

Note: Component locations (vacuum ports, idle screw, sync screws) vary slightly by model and carburetor design, but the synchronization concept and workflow are the same.

Why vacuum sync matters

When carburetors are synchronized, the engine is “happy”:

• Smooth, stable idle

• Easier starting

• Smooth pull from idle to high RPM

When synchronization is off, the engine will feel like it is fighting itself internally. Common symptoms include:

• Hanging or peaky idle: RPM stays high at a stop and does not settle cleanly

• Idle speed that won’t “dial in”: idle screw adjustments cause the idle to swing from too high to too low with no sweet spot

• Worse as the engine warms up: hanging idle becomes more obvious at operating temperature

• Rough acceleration and vibration: the engine feels shaky and uneven

• More mechanical noise than expected: knocking/clacking sounds increase when cylinders are not sharing load evenly

When to do a vacuum sync

Anytime you remove and reinstall the carburetors, plan to reset vacuum synchronization. But a vacuum sync is only meaningful if the motorcycle is already mechanically and electrically in good tune.

Prerequisites before vacuum sync

Do not try to vacuum sync first. Set the foundation so the readings are real and repeatable:

• Carburetors are clean and rebuilt (no clogged passages, correct assemblies)

• Intake manifolds are in good condition and sealing well (no vacuum leaks)

• Air filters are installed (run the motorcycle in its real intake configuration)

• Cam chain is adjusted, valves are adjusted, and ignition timing is set in that exact order.

If any of the above is off, you can “sync” the carburetors and still end up with a motorcycle that runs poorly.

Bench sync first - the non-negotiable starting point

Before vacuum sync, a bench sync must be performed. The objective is to have all 4 carburetor slides as close to the same position as possible. The drill bit method is a good technique to start with. If a bench sync is not performed or is too is far off, the motorcycle may not start, and vacuum sync becomes frustrating or impossible.

The three key areas you must identify on the carburetors

1) Vacuum ports (where to connect the gauge)

This is where the vacuum adapter fittings (nipples/adapters) install so vacuum lines connect. You need a vacuum signal from each cylinder. Depending on model, the vacuum port will be:

• A plugged port on the carburetor body, or

• A port on the intake manifold

2) Idle speed screw (sets base idle RPM)

This is the main idle speed adjuster for the carburetor rack. It sets how fast the motorcycle idles while you’re doing the sync.

A stable idle speed matters because vacuum readings change with RPM.

3) Synchronization screws (balance carburetors to each other)

These are the screws you adjust during the synchronization process. They change the slide position up or down in each carburetor in relationship to the other carburetors. The objective being to balance the airflow between all the carburetors.

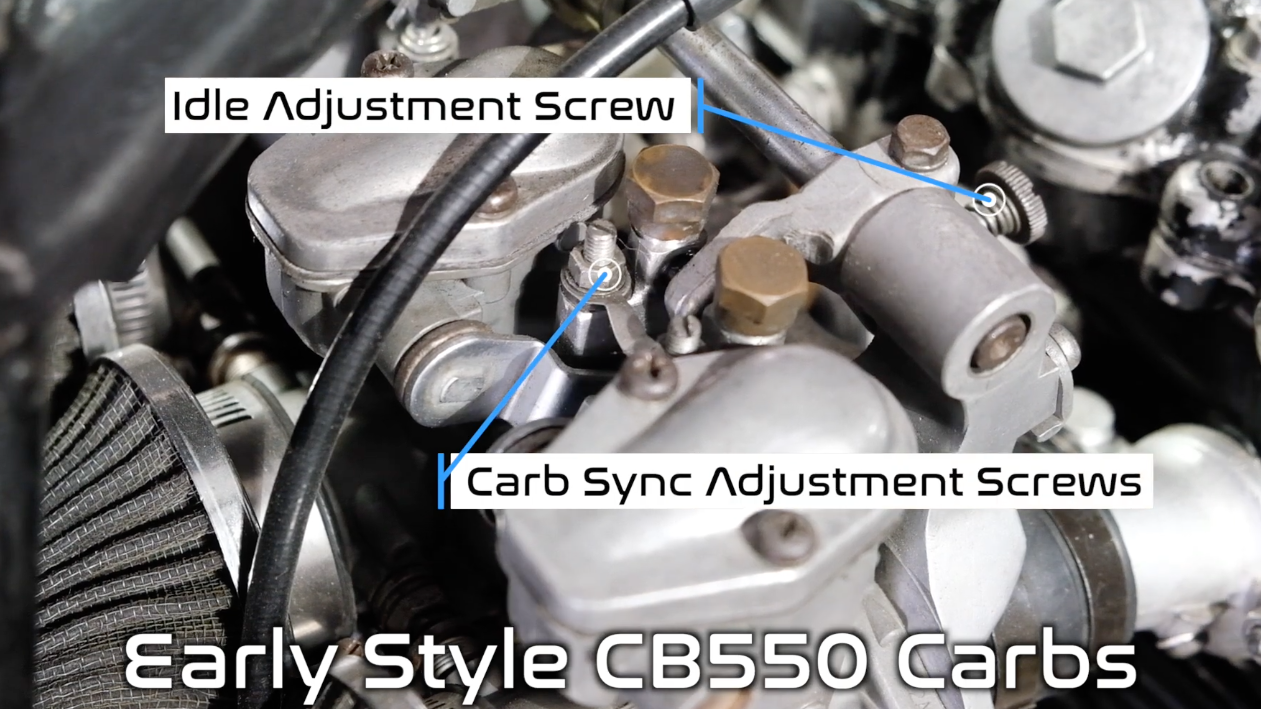

CB500K / Early CB550 K0 - K2 / CB550F Location

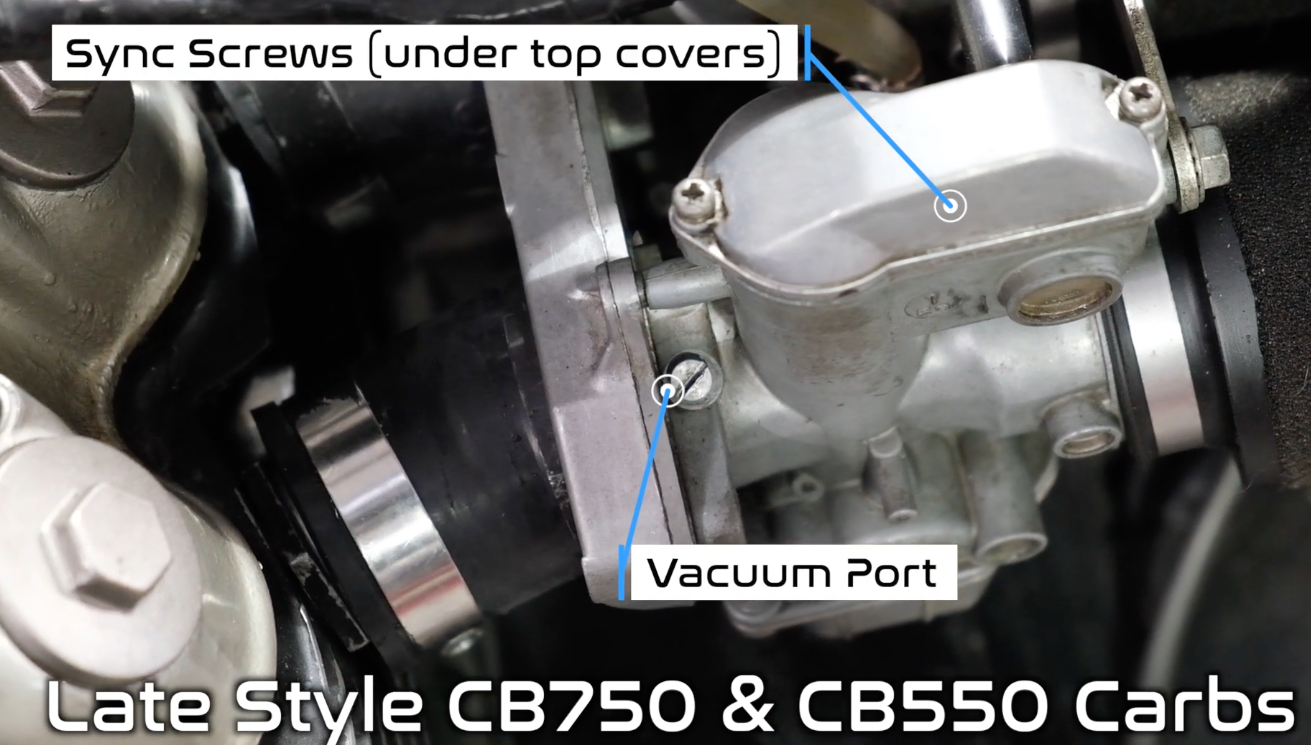

Late CB550K / Late CB750K / Late CB750F "PD Carburetors" location

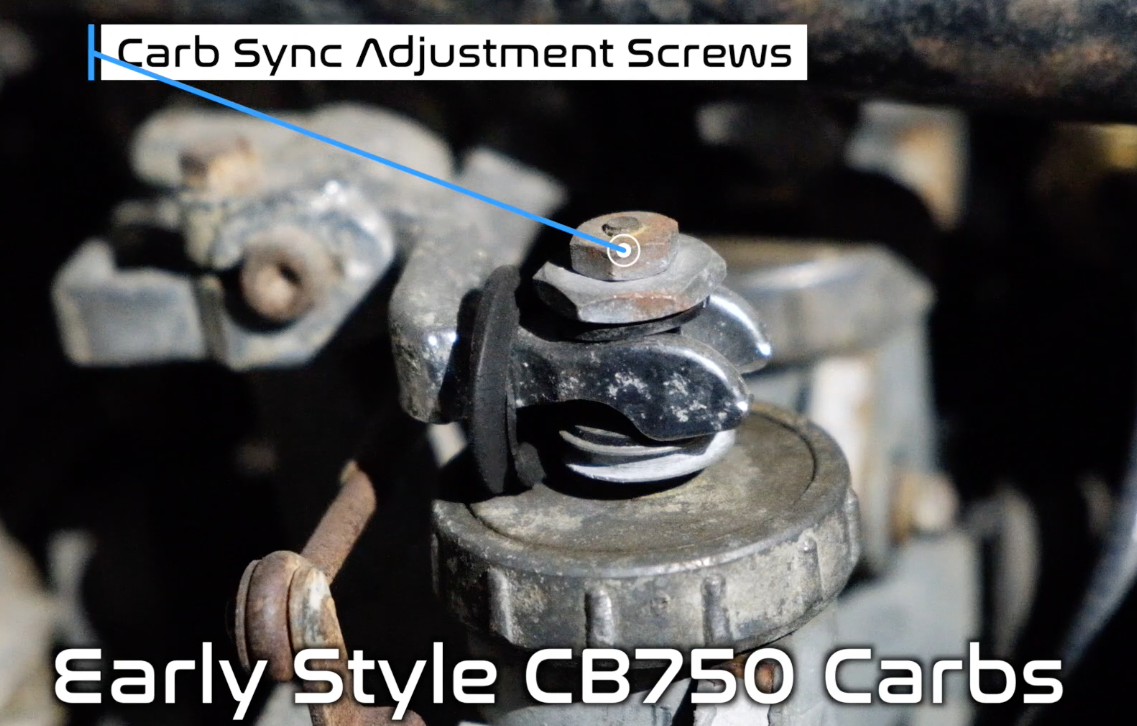

Early CB750K Location

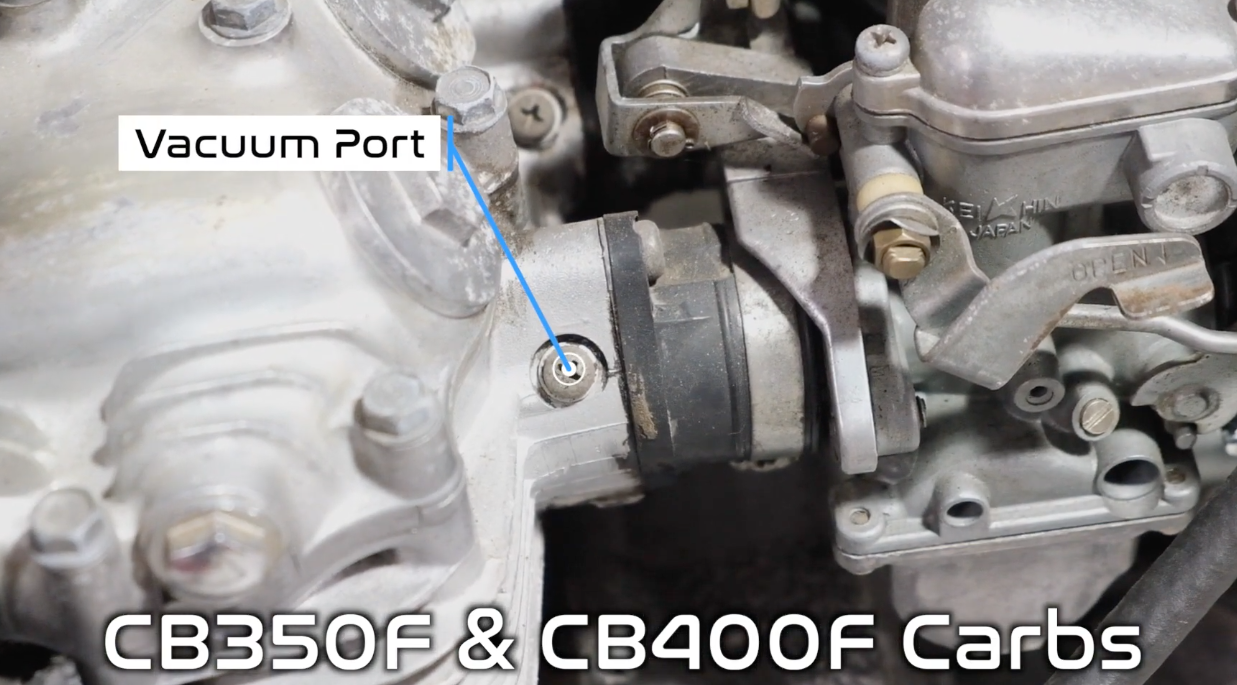

CB350F / CB400F Location

Tools overview

There are many ways to measure vacuum. In the shop, we prefer a single gauge paired with a selector “gang” valve so the same gauge reads each cylinder one at a time.

Why we avoid relying on multi-gauge racks

Four-gauge “banks” are common (two-gauge or four-gauge sets), but they have a real drawback: the calibration of the gauges often don’t match each other. If one gauge may read high and another reads low, even when vacuum is identical, you can chase your tail and never get a true sync. Using one gauge eliminates gauge-to-gauge accuracy differences.

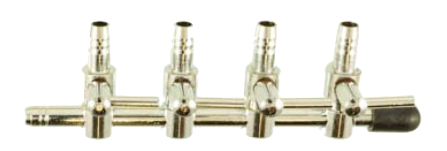

What a “gang valve” does

A gang valve lets you toggle between cylinders while using the same gauge. That means:

• Cylinder 1 reads on the same gauge as Cylinder 2, 3, and 4

• Your comparison is consistent and repeatable

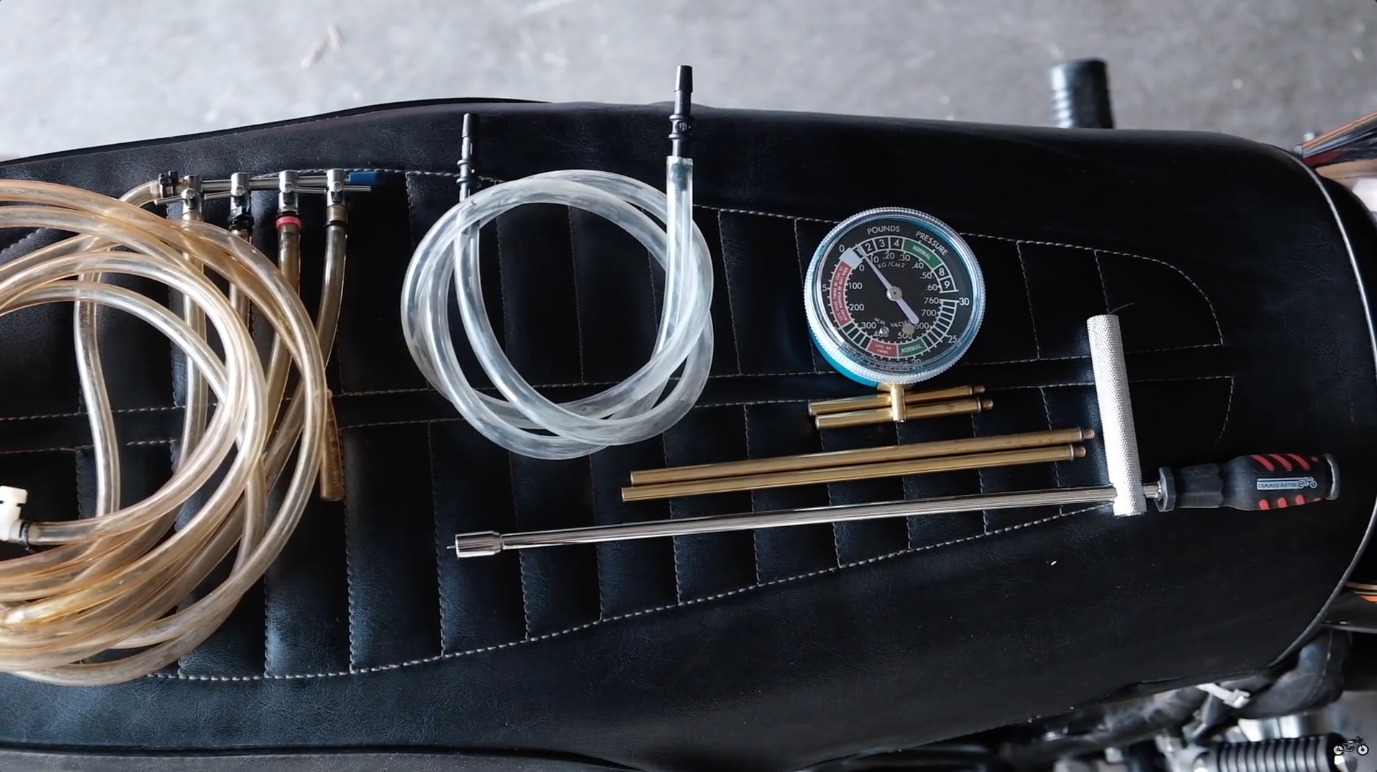

Kit Components

Below are the vacuum sync components that will come in our single-gauge setup for a four-cylinder.

How to set up the vacuum sync equipment

This section covers the setup concept so you’re ready for the live sync process.

1. Confirm the motorcycle is in true “ready-to-sync” condition: warm, stable idle possible, no intake leaks, and bench sync already completed.

2. Locate the vacuum ports on each cylinder (carburetor body or intake manifold).

3. Remove the port plugs (if equipped) and install the vacuum port adapters.

4. Connect a vacuum line from each adapter to the gang valve inputs.

5. Connect the gang valve output to the single vacuum gauge.

6. Mount the gauge and valve where you can safely see and reach them while the motorcycle is running.

7. Set up a cooling fan in front of the bike to keep the engine temperature down. The sync process takes longer than you may expect, the longer the engine runs, the hotter it gets, the more temperamental any adjustment becomes (this is an air-cooled engine).

Important: If your gauge needle is jumpy, adjust the inline dampening valve to steady the needle. Set the dampening valve so that it still responds to the vacuum pressure but does not jump between values significantly.

How to Synchronize Carburetors on a Vintage Honda Four-Cylinder - Live CB550K Vacuum Sync

FAQ

Do I need to vacuum sync every time I work on the carburetors?

If you remove and reinstall the carburetors, plan to vacuum sync again. Even small changes in assembly, cables and linkage can affect synchronization.

Can I vacuum sync without rebuilding the carburetors first?

You can try, but it’s rarely productive. Dirty circuits, vacuum leaks, or incorrect tune-up settings will mask the true readings and lead to poor results.

What’s the difference between bench sync and vacuum sync?

Bench sync is the starting alignment of the carburetor slides with the bank of carburetors off the motorcycle (aka on the bench). Bench sync performed before the carburetors go back on the bike (typically after a rebuild) so that motorcycle will start and run well enough to perform the vacuum sync. Vacuum sync is the fine adjustment step done with the engine running to adjust vacuum readings of each carburetor; this is so all cylinders run evenly and the engine runs smoothly as a whole.

Why not just use a four-gauge rack?

They can work, but mismatched gauge calibration is common. A single gauge read across all cylinders gives consistent comparisons.
